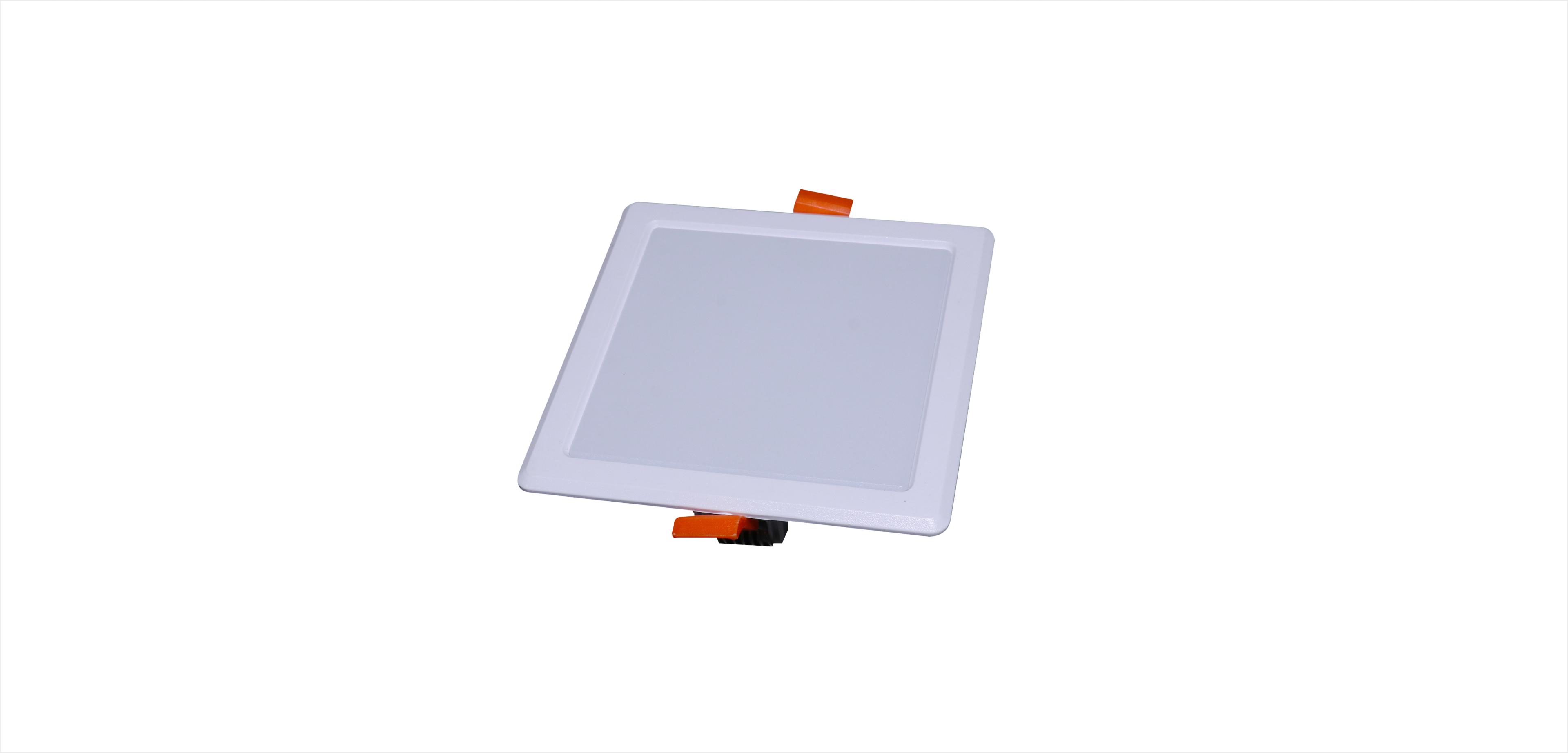

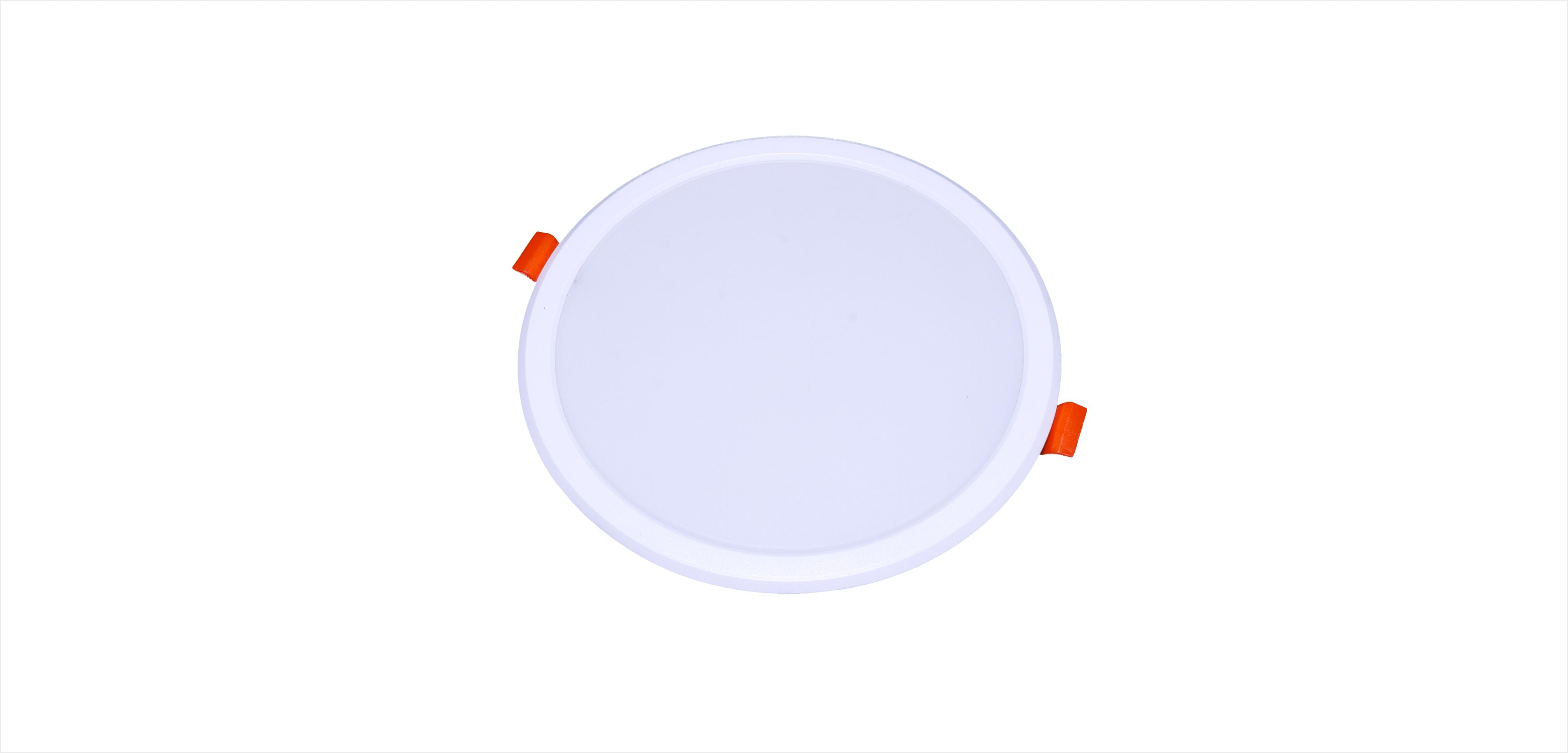

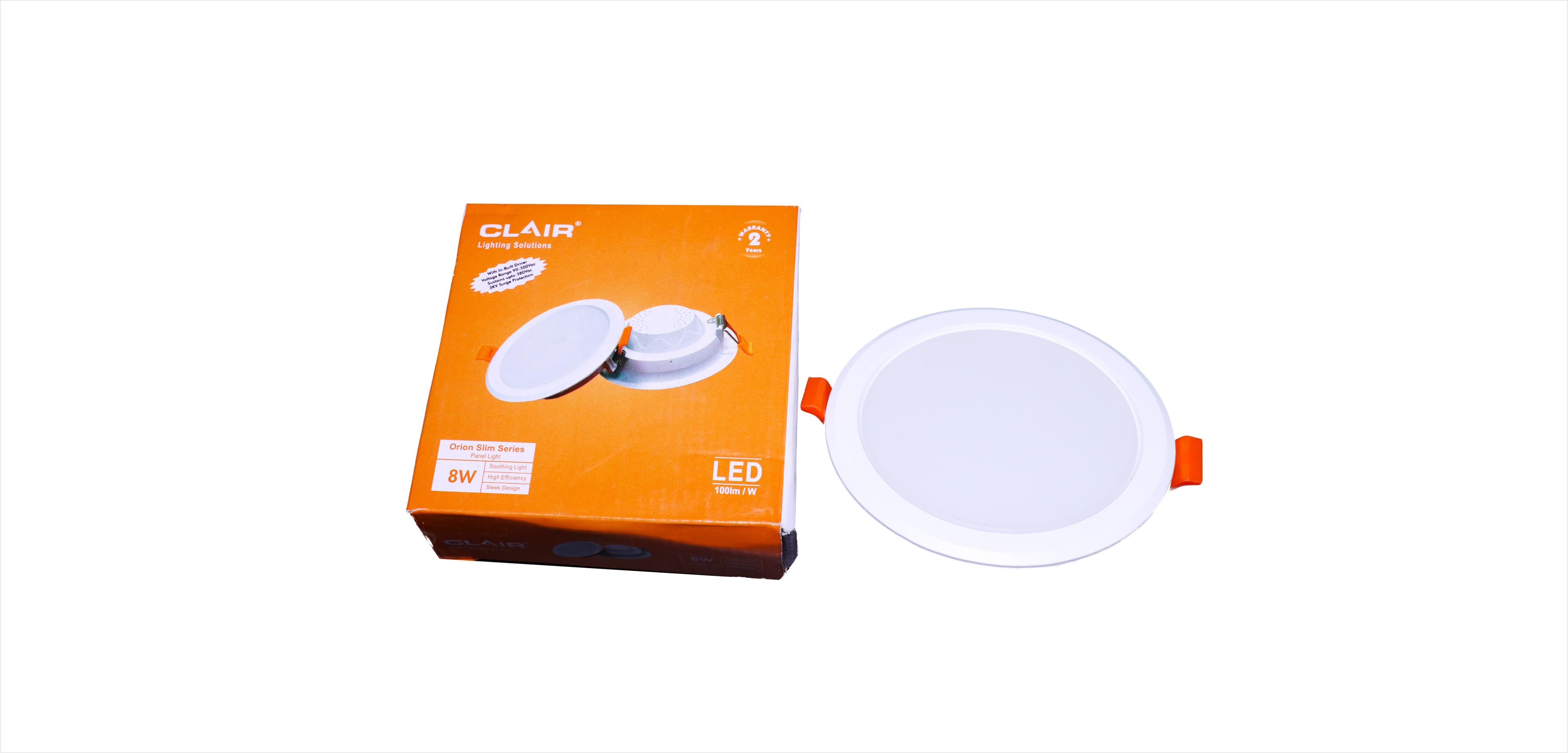

Orion Down Light

POLY CARBONET recess mounted luminaire with high brightness LED package and Unique pattern acrylic de-glaring diffuser sheet for glare free uniform light distribution

Features & Benefits

Icon 1

Ideally suitable for office

lighting, showrooms, high-

end residences

Icon 2

Energy efficient and low heat


Icon 3

Quick installation, easy to


Icon 4

No UV & IR.

Icon 5

Working temperature :

-10° C to 45° C

Icon 6

Environment-friendly as it

does not contain Mercury

Icon 7

Instant light with low

running temperatures

Icon 8

Operating temperature :

-10° C to 45° C

Icon 9

Operating voltage range :

120 V - 300 V

Icon 10

Average LED life :

50000 hours

Technical Specifications

Wattage08W(RD/SQ)15W(RD/SQ)20W (RD/SQ)
Dimension (mm)LXWXH (122X122X36)LXWXH (166X166X35)LXWXH (218X218X202)
Cutout/Pole Dia (mm)120MM147MM200MM
Body ColorWhiteWhiteWhite
Operating Voltage220 - 240220 - 240220 - 240
Power Factor>0.9>0.9>0.9
Total Lumen80015002000
Lumen Efficacy(LM/W)100100100
Beam Angle120°120°120°
Housing MaterialPoly CarbonetPoly CarbonetPoly Carbonet
Color Temperature
