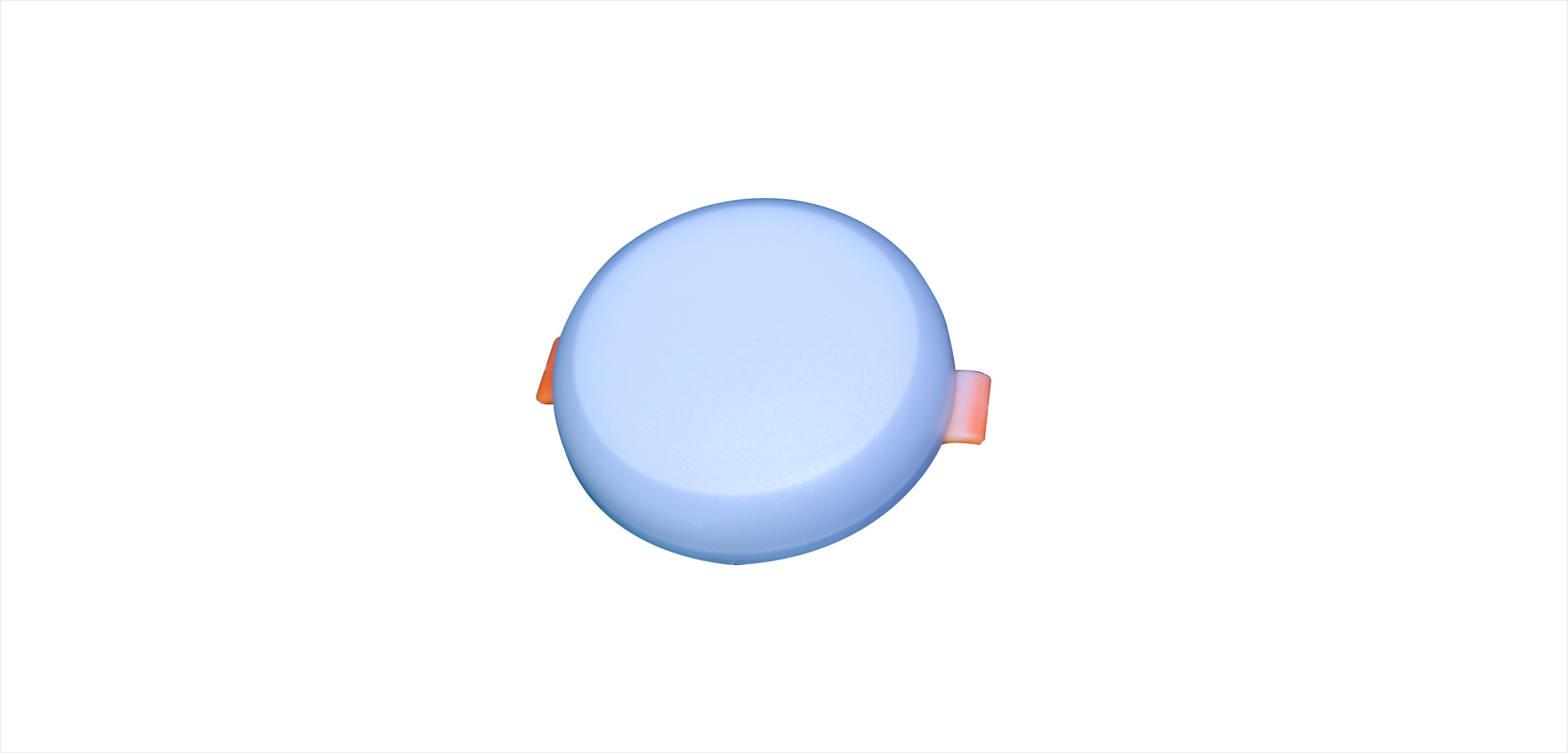

Rainbow Series
Versatile lighting source that offers a wide range of application with different aperture for same lamp unit. The lamp is deep recessed into the fixture to provide a glarefree solution.
Features & Benefits
Delivers excellent illumination
& comfort in high
ceiling areas
Long life & photobiologically
safe LEDs
High performance electronic
driver ensures zero
maintenance
No harmful UV & IR radiations
Environment-friendly as it
does not contain Mercury
Instant light with low
running temperatures
Operating temperature :
-10° C to +45° C
Operating voltage range :
120 V - 300 V
Average LED life :
50000 hours
Technical Specifications
| Wattage | 12W cob | 12W cob | 12W cob |
|---|---|---|---|
| Product Code | MR-W011 (White) | MR-W011 (Chrome) | MR-W003 (Chrome) |
| Dimension (mm) | Length-92MM, Dia-71.60MM | Length-92MM, Dia-71.60MM | Length-102MM, Dia-84MM |
| Cutout/Pole Dia (mm) | 75MM | 75MM | 89MM |
| Body Color | Grey Heatsink, White Housing | Grey Heatsink, White Housing | Black |
| Operating Voltage | 220 - 240 | 220 - 240 | 220 - 240 |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Total Lumen | 1020 | 1020 | 1020 |
| Lumen Efficacy(LM/W) | 85 | 85 | 85 |
| CRI | >80 | >80 | >80 |
| CCT | 3000K/4000K/6500K | 3000K/4000K/6500K | 3000K/4000K/6500K |
| Beam Angle | NA | NA | NA |
| Housing Material | Aluminium Pressure Die Casted Housing With Powder Coating | Aluminium Pressure Die Casted Housing With Powder Coating | Aluminium Pressure Die Casted Housing With Powder Coating |
