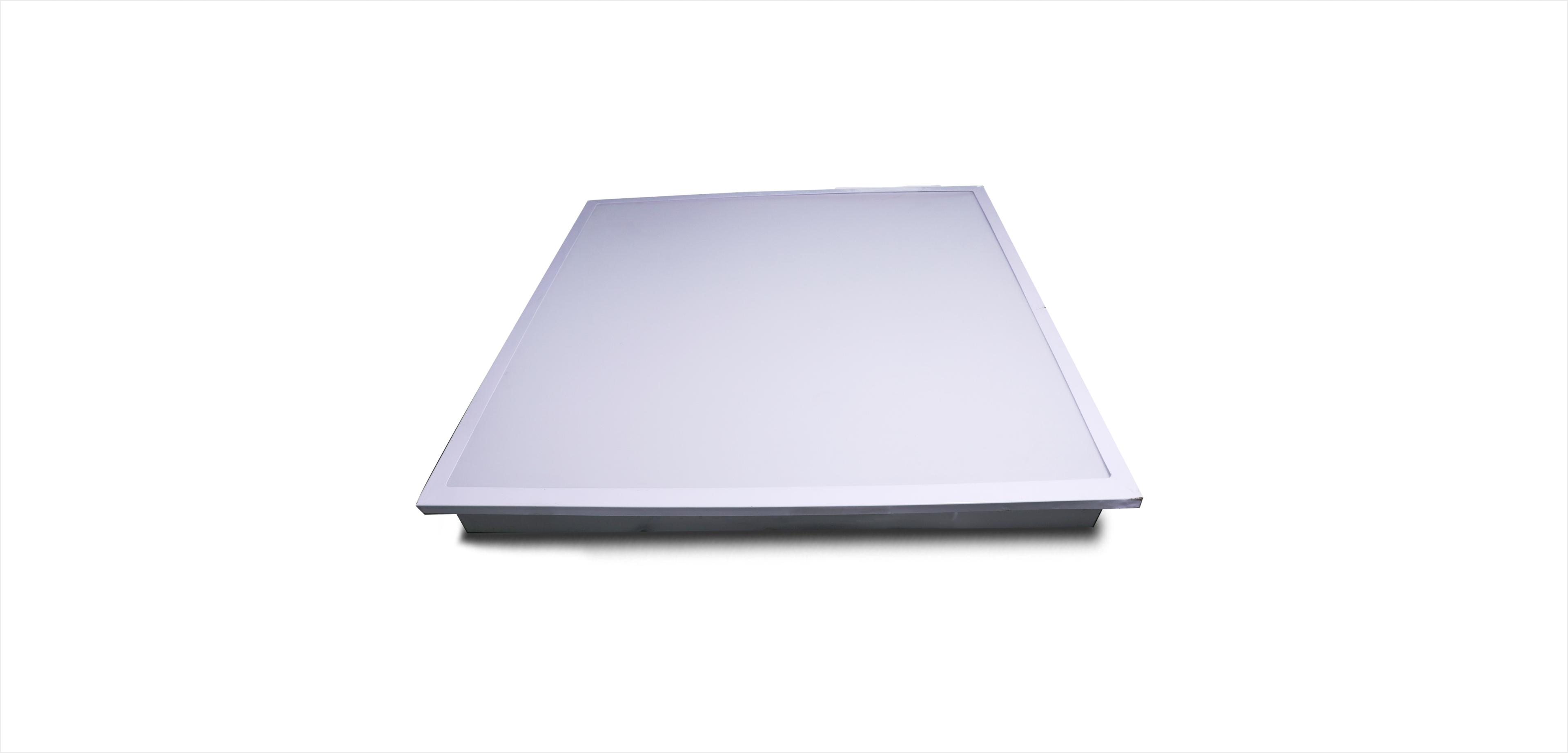

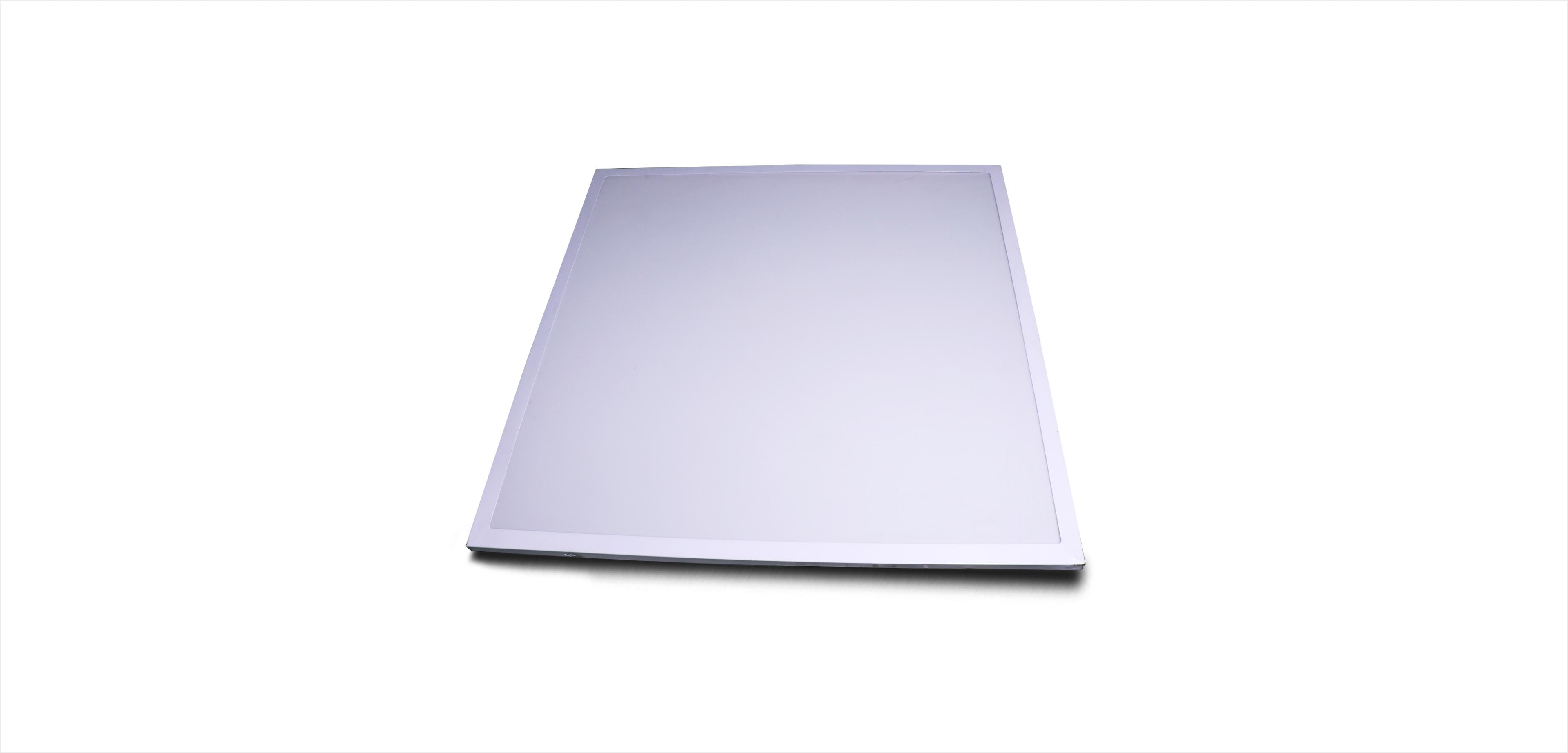

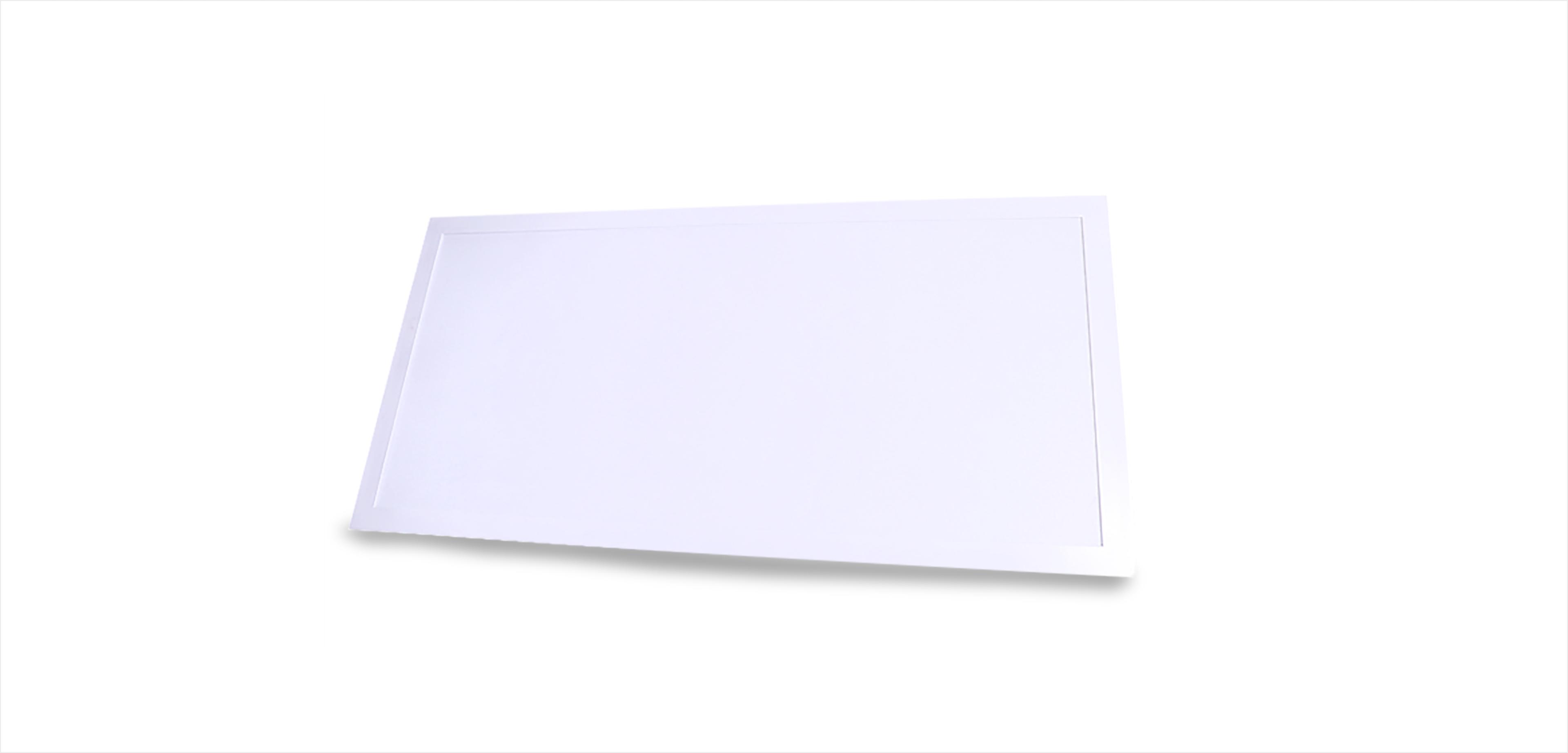

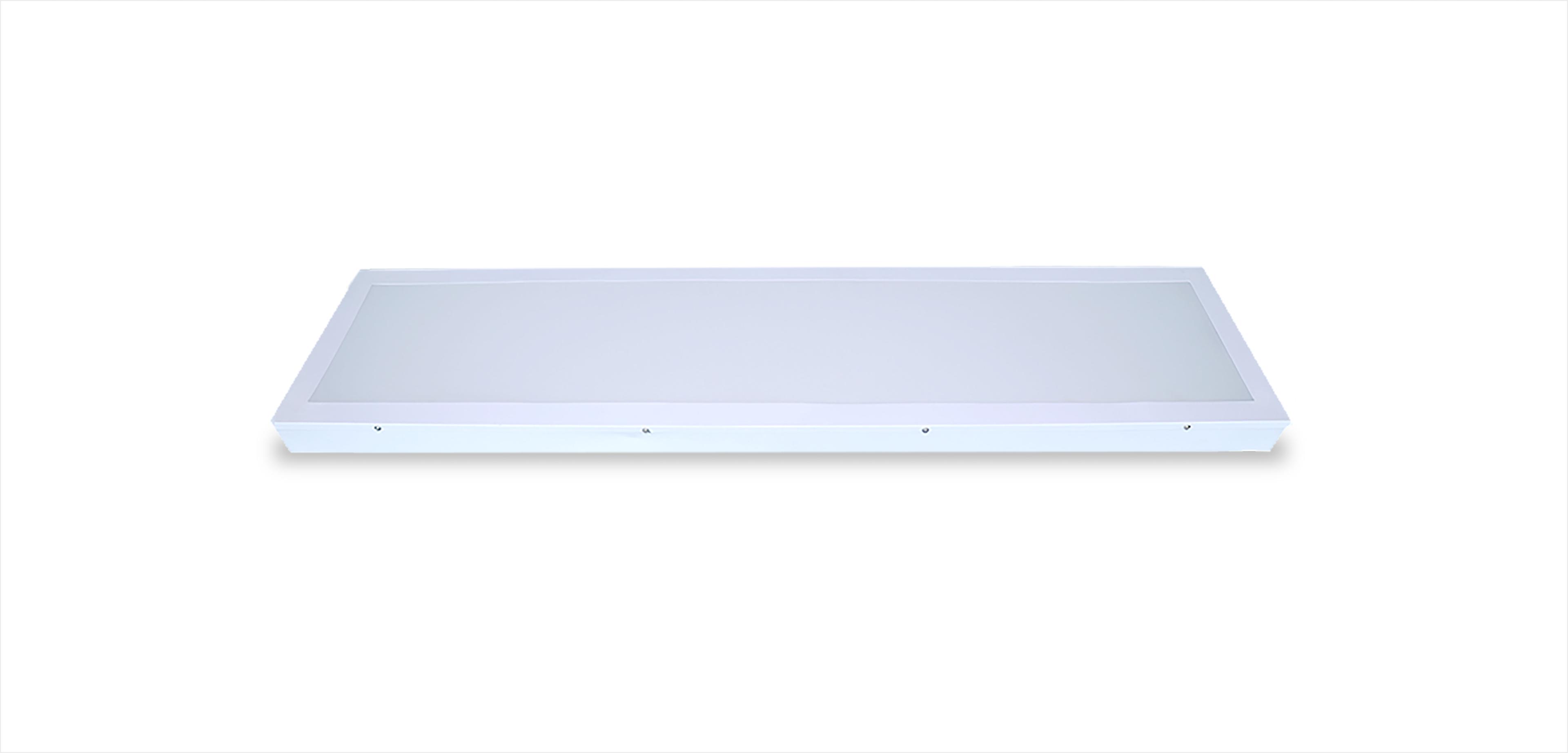

Svelte Series Slim (BACKLIT)
.8b8cb2f9.webp&w=3840&q=75 "Svelte Series Slim (BACKLIT)")
%201.ee31a841.webp&w=3840&q=75 "Svelte Series Slim (BACKLIT)")
%202.7dcaf5fd.webp&w=3840&q=75 "Svelte Series Slim (BACKLIT)")
%203.81862802.webp&w=3840&q=75 "Svelte Series Slim (BACKLIT)")
Ultra modern recess mounting luminaire with high performance LEDs, suitable for mounting with Armstrong/Grid ceiling.
Features & Benefits
Excellent efficacy & performance
suitable for high ceiling areas
Long life & photobiologically
safe LEDs
High performance electronic
driver ensures zero
maintenance
No harmful UV & IR radiations
Environment-friendly as it
does not contain Mercury
Instant light with low
running temperatures
Operating temperature :
-10° C to +45° C
Operating voltage range :
120 V - 300 V
Average LED life :
50000 hours
Technical Specifications
| Wattage | 40W (2X2) | 36W (4X1) |
|---|---|---|
| Product Code | CLEC40SQBL | CLEC36SQBL |
| Dimension (mm) | LXWXH (595X595X57.50) | LXWXH (1200X300) |
| Cutout/Pole Dia (mm) | 580X580MM | NA |
| Body Color | White | White |
| Operating Voltage | 220 - 240 | 220 - 240 |
| Power Factor | >0.9 | >0.9 |
| Total Lumen | 4000 | 3600 |
| Lumen Efficacy(LM/W) | 100 | 100 |
| CRI | >80 | >80 |
| CCT | 6500K/4000K/3000K | 6500K/4000K/3000K |
| Beam Angle | 120° | 120° |
| Housing Material | CRCA | CRCA |
| Color Temperature |  | |
