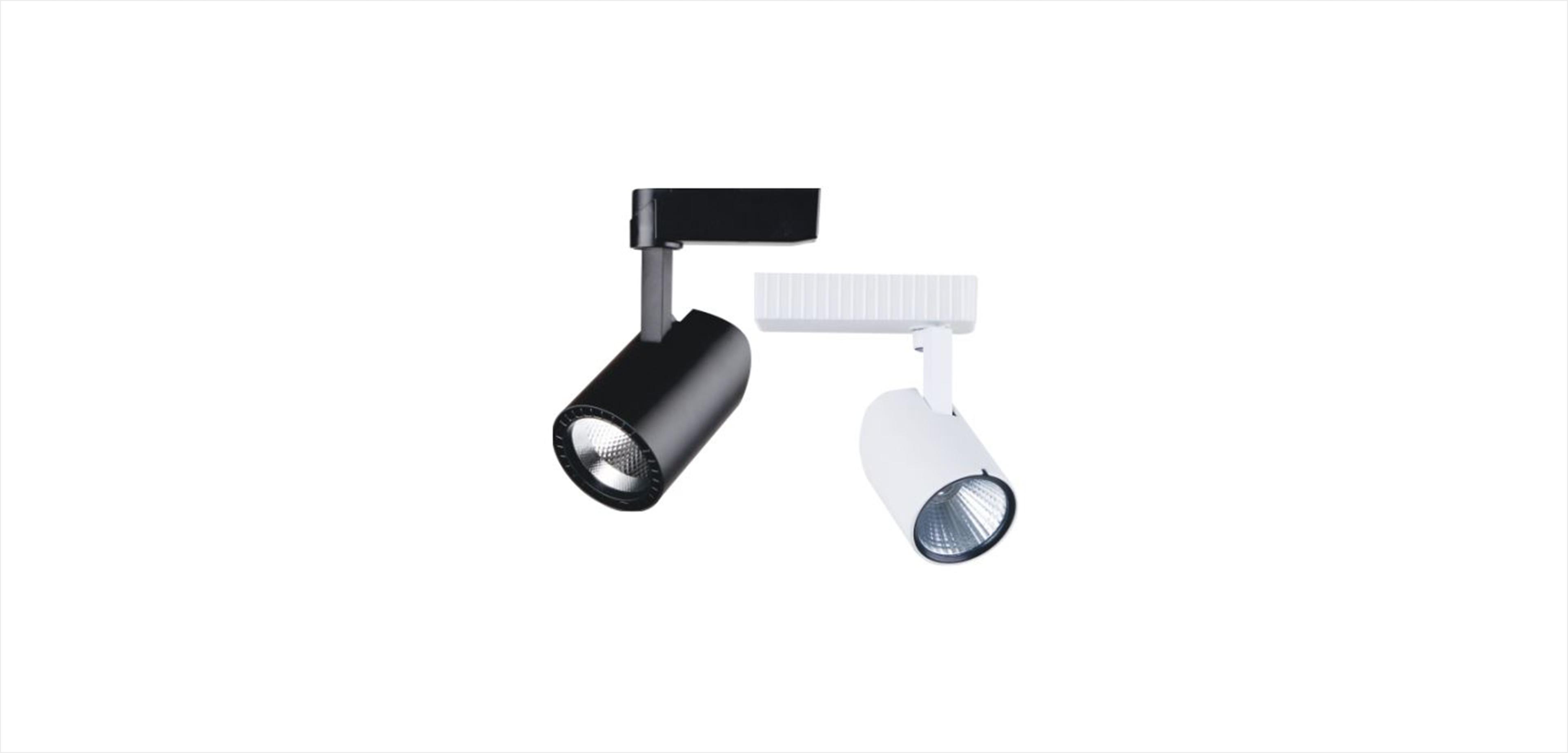

Track Light
Features & Benefits
High quality COB LED light
gives excellent quality
of distribution
180° swivel and 90°
elbow tilt
Available in narrow and
wide beam angles
No harmful UV & IR radiations
Environment-friendly as it
does not contain Mercury
Operating temperature :
-10° C to +45° C
Operating voltage range :
120 V - 300 V
Average LED life :
50000 hours
Technical Specifications
| Wattage | 07W | 12W | 18W | 30W |
|---|---|---|---|---|
| Product Code | CLT07COBH205/362 | CLTBK12COB3H205 | CLTBK18COB3H205/H223 | CLTBK30COB3H223/H227 |
| Dimension (mm) | NA | NA | NA | NA |
| Cutout/Pole Dia (mm) | NA | NA | NA | NA |
| Body Color | Black/White | Black/White | Black/White | Black/White |
| Operating Voltage | 220 - 240 | 220 - 240 | 220 - 240 | 220 - 240 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
| Total Lumen | 595 | 1020 | 1530 | 2550 |
| Lumen Efficacy(LM/W) | 85 | 85 | 85 | 85 |
| CRI | >80 | >80 | >80 | >80 |
| CCT | 6500K/4000K/3000K | 6500K/4000K/3000K | 6500K/4000K/3000K | 6500K/4000K/3000K |
| Beam Angle | 24° - 30° | 24° - 30° | 24° - 30° | 24° - 30° |
| Housing Material | Aluminium Pressure Die Casted Housing With Powder Coating | Aluminium Pressure Die Casted Housing With Powder Coating | Aluminium Pressure Die Casted Housing With Powder Coating | Aluminium Pressure Die Casted Housing With Powder Coating |
